2026 Sport Haven AU510D - 5449

2026 Sport Haven AU510D

Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.

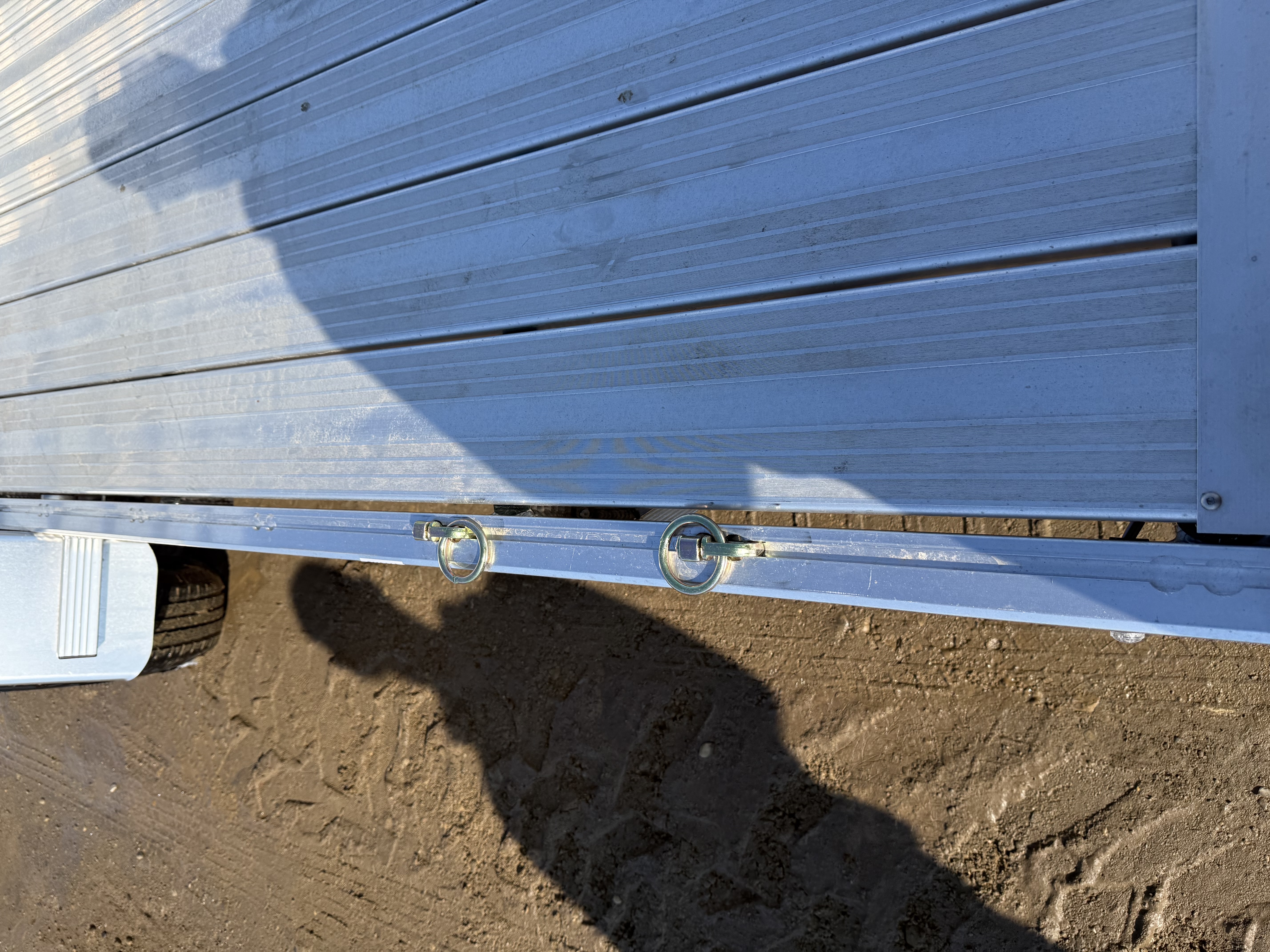

The Connect Tie Down Track features holes every  12" along the Integrated frame rails where double stud tie downs attach.

Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6

Features may include:

• Integrated Connect Tie Down Track Built into Frame rails - Connect points every 12"
• Aluminum Decking - Anti slip aluminum plank decking
• Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
• 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
• Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
• Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
• 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
• Aluminum Fenders - corrosion resistant, lightweight, and durable
• LED Lighting - Limited Lifetime LED warranty
• Jig Welded Construction for Consistency, Quality
• Fluted Aluminum Tube Tongues and Tongue Supports
• Fluted Aluminum Tube Frame Crossmembers (24" On-Center)
• 2" Wide Aluminum Tube Top Rail
• Aluminum Tube Fender Supports

Construction Specs

• Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
• 2" x 5" Double Hollow Side Frame (2" x 4" - 10' & Under Models)
• 6" Slip Resistant Aluminum Decking
• All Aluminum 4' Rear Ramp

Component Specs

• LED Lights

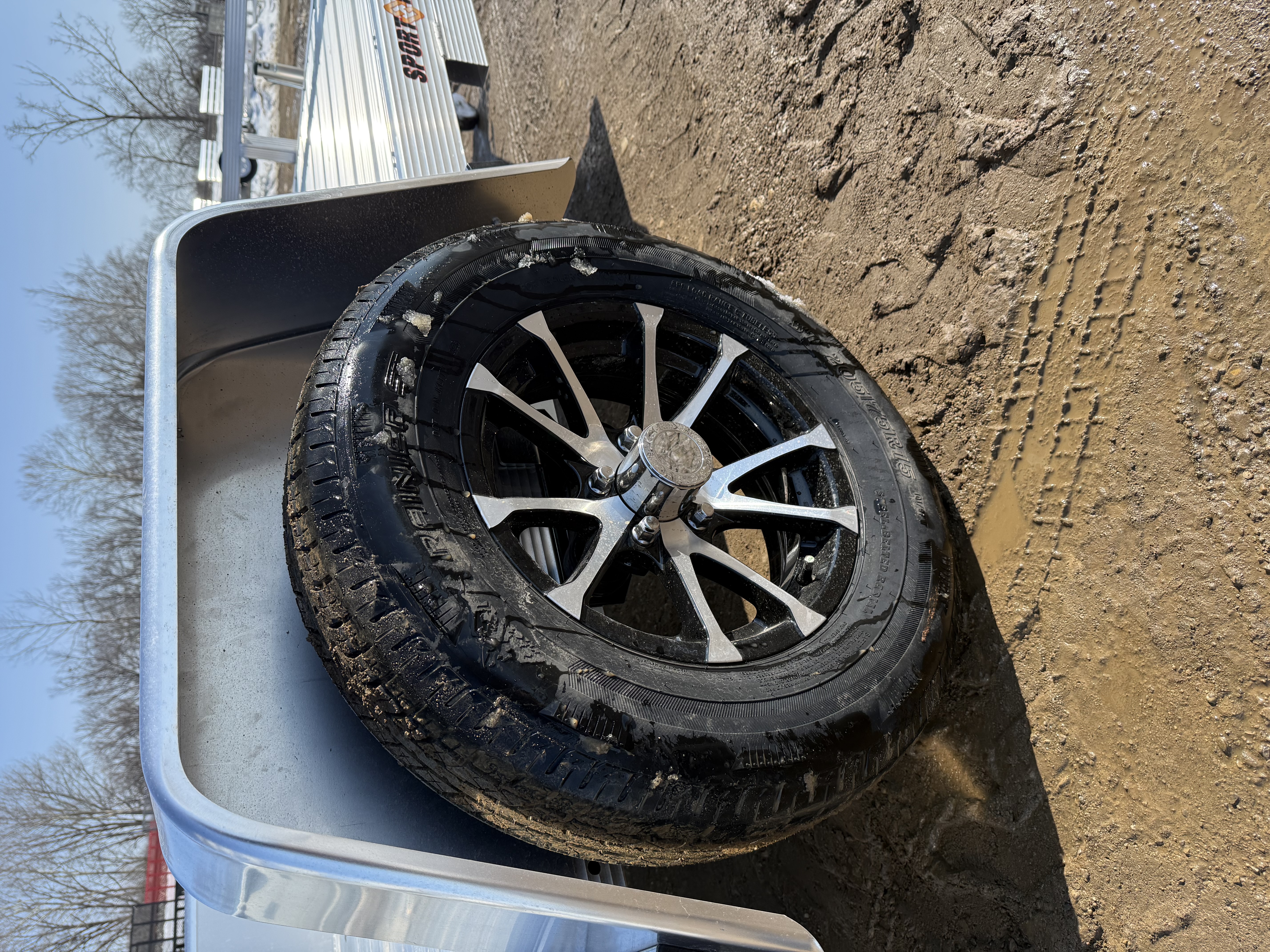

• 15" Aluminum Wheels

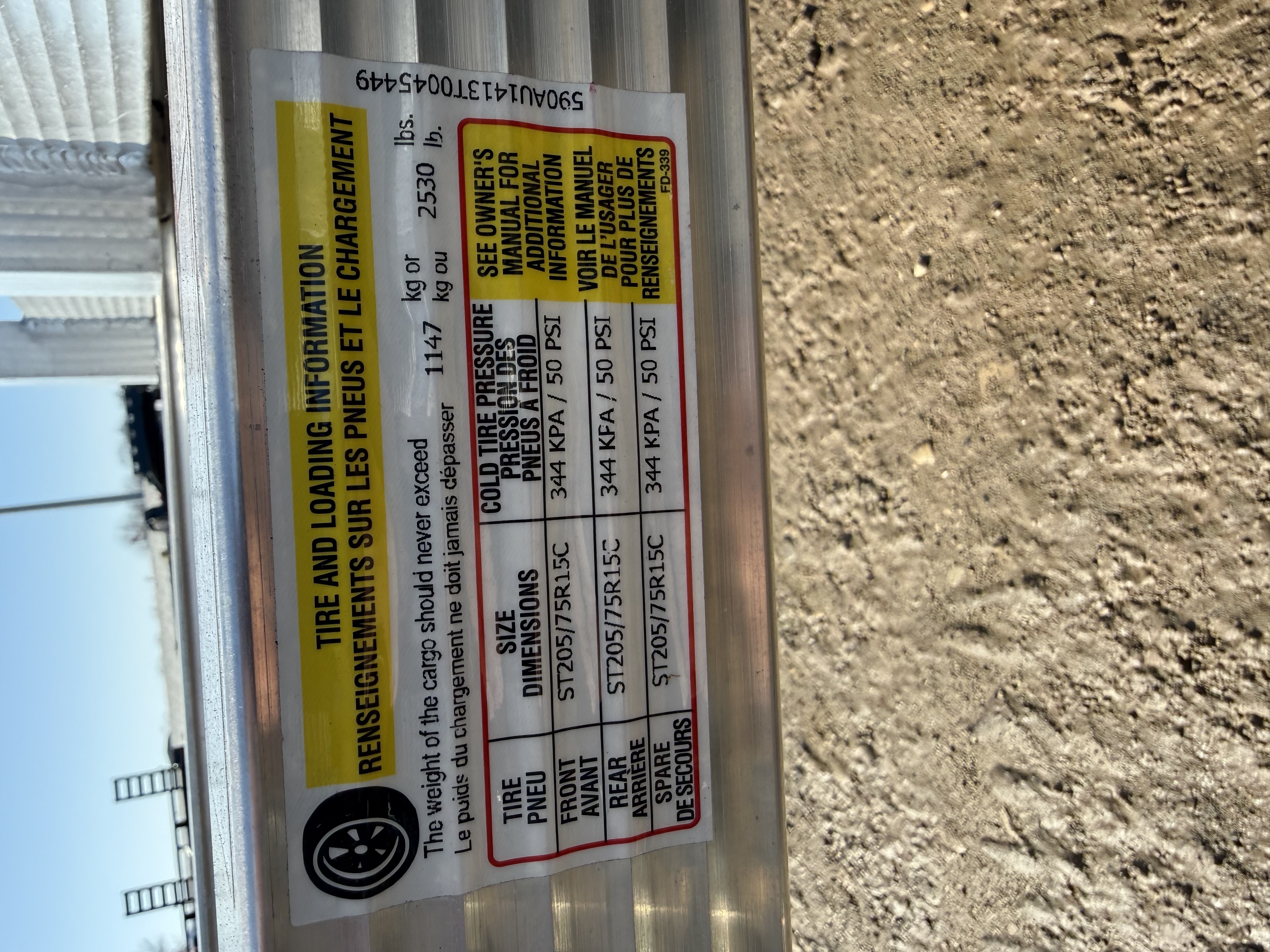

• ST207/75R15C Radial Tires
• 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
• 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
• 3,500 lb Capacity Zinc Plated Couplers
• 3,200 lb Capacity, 27" Safety Chains
• 1,200 lb capacity Swivel Wheel Jack

Misc Specs

• 4-Way Flat Wiring Harness
• 2" Ball
• 14" Hitch Height
• 18" Deck Height
• 6.5" Front Rail Height

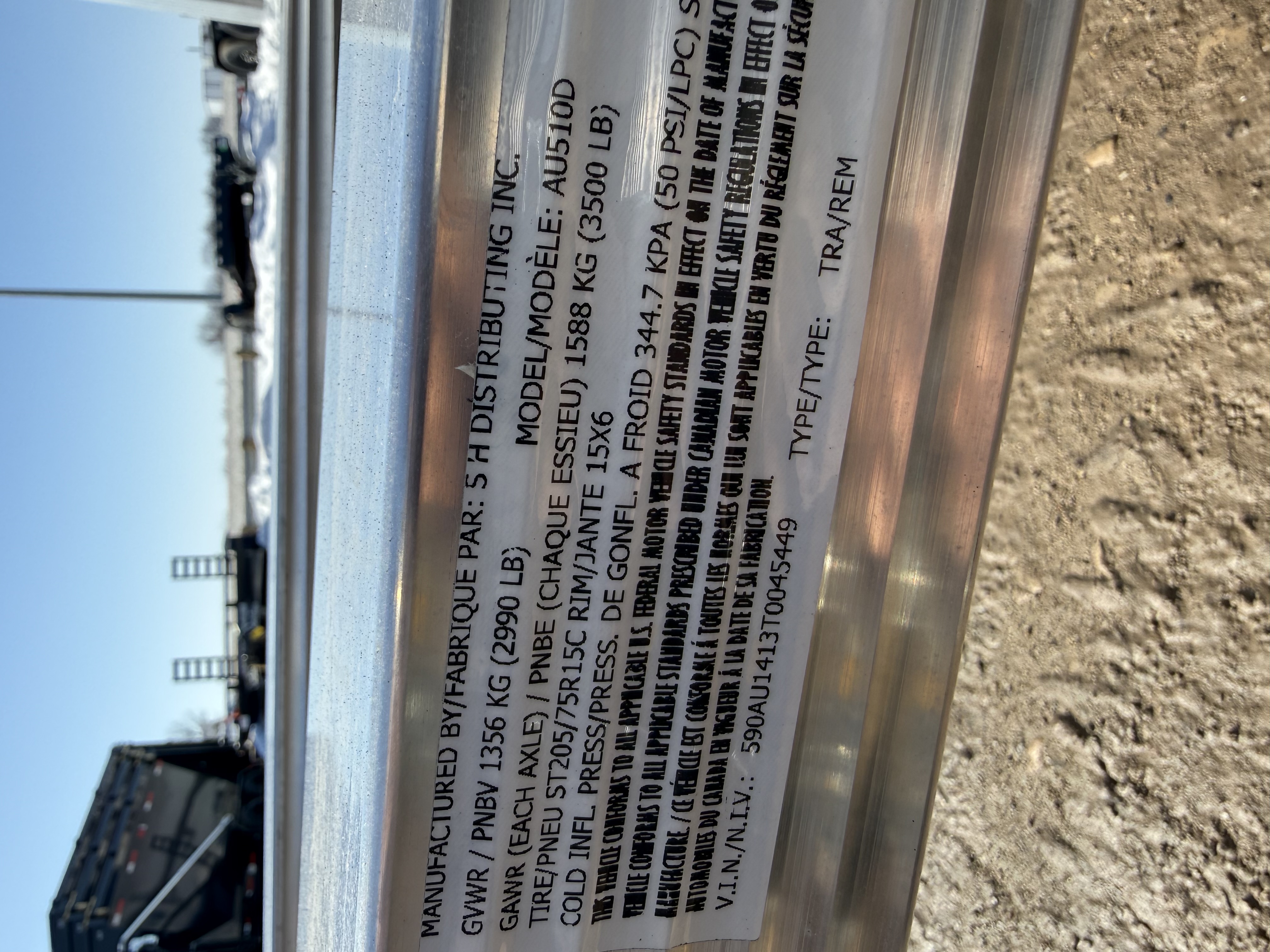

• 2,990 lb Gross Vehicle Weight Rating (GVWR)
